There are several options for fencing cattle. Depending on the breed of cattle,
the number of fence wires can vary from one to six.
Dairy Cattle
Dairy cows are among the easiest
animals to contain with electric fences because they are relatively docile and
are used to daily human contact. Dairy cattle being strip grazed can usually be
contained with a single conductor of poly wire or 12mm poly tape, powered by an
energiser of around 0.25 Joules or less provided the voltage on the fence is
around 2,000 - 3000volts.
Beef Cattle
To safely contain most beef cattle, you need an energiser that delivers a minimum of 2,000 - 3,000 volts on the fence line. Voltage levels are impacted by vegetation on the fence line, length of fence and type of wire.
Bulls
Note: A minimum of 4,000 - 5,000 volts on the fence line is required to keep out predators.
If normally kept segregated for breeding purposes, bulls or other aggressive livestock may become highly motivated to escape confinement, especially when nearby cows are in heat. To contain bulls, maintain 3,000 - 4,000 volts on the fence line with an energiser that has a minimum of 1.5 Joules of stored energy. Four to five wires are best. For more aggressive animals, you want the electrified fence to deliver a more intense shock to discourage them from going near the fence again so higher joules would be desirable on long fences.
Size of Cattle
Most cattle are fattened on
grass aged between a few months and up to 2 years and are usually reasonably
docile so 3 wires would probably suit. The wire spacing depends on the breed /
size of the cattle but as a guide, on a permanent / boundary fence, the wires
should be spaced at knee height, lower chest and upper chest heights.

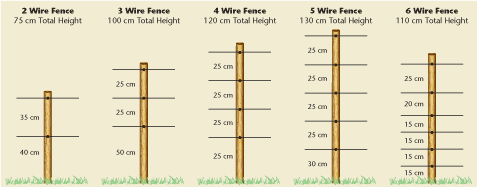

Wire Spacing Guide
Tip: A fence enclosing both cows and calves requires an electrified wire at the nose-level height of each.
Type of Fence
Temporary
If it is a temporary subdivision within a
permanent boundary, total security may not be an important issue, therefore,
poly wire or tape on plastic moveable posts may be best.
Strip Grazing
Strip fencing for dairy cows is normally
carried out using a portable energiser, (consider 9v power for ease of daily
moving) poly wire or tape and plastic posts or metal pigtail posts. Strip
grazing fences are usually adequate with a single conductive wire about 90 –
100cms (3 ft) or so above the ground. The use of reels for rewinding the poly
wire makes moving the fence much more efficient.
Permanent
Assuming no secondary barrier such as a
hedge or wall, a permanent boundary fence should be constructed of timber posts,
high tensile wire and ideally a mains powered energiser.
Trained Cattle
Are the cattle used to electric
fencing within a limited grazing area? If not, care should be taken to ensure
they are trained to respect the fence by allowing them to touch the conductor
and receive a severe shock. All farm and domesticated animals need initial
“training” to respect the fence, preferably under supervision, to ensure they
learn where the shock comes from so they stay away. A high level of shock must
be received initially to create the psychological “fear” imprint to ensure they
quickly learn to respect the fence.
Powering Recommendations
As a very general
guide, the energizer powering a permanent fence should have a stored energy of
not less than 0.5 joules for cattle and typically an additional 0.5 joules per
km of fence length when using multi strand 2.5 mm high tensile
wire.
XStop Electric Shepherd energisers are capable of maintaining
these voltage levels. However, all energisers produce approximately the same
voltage when not connected to a fence and it is the strength of the shock,
measured in joules, which enables very long fences to be constructed.
When moving a temporary fence on a daily basis,
consider a 9-volt battery energiser. These are lightweight, and incorporate the
non rechargeable battery within the energiser case.
Battery and solar
powered energisers are ideal for permanent and semi-permanent remote
installations where mains power is not available.
